TC3.M CONTROL HUB
Complete electrical control hub
- Atmel 8-bit AVR® RISC-based microcontroller
- Trench type MOSFET powered
- Solid State design for water-proof and shock-proof operation

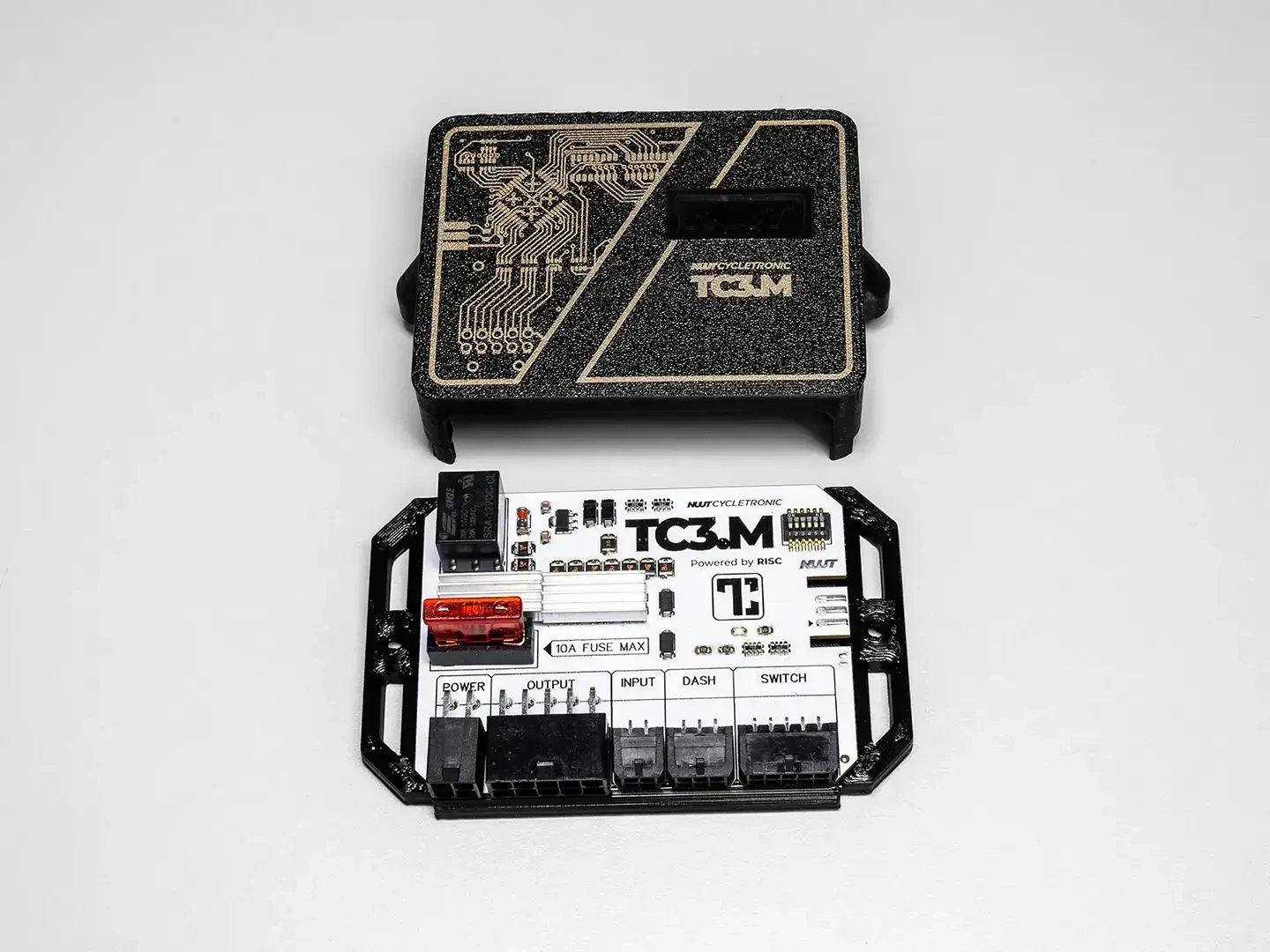

- 4 layer PCB design utilizing SMD components
- PTC smart fuse protection with auto reset
- Optimized for LED lighting
- On board "fly-back" protection circuit
- AC/DC voltage runaway engine shutdown protection
- Charging system monitoring with fault audible notification
- Enhanced engine power protection with quick blow fuse

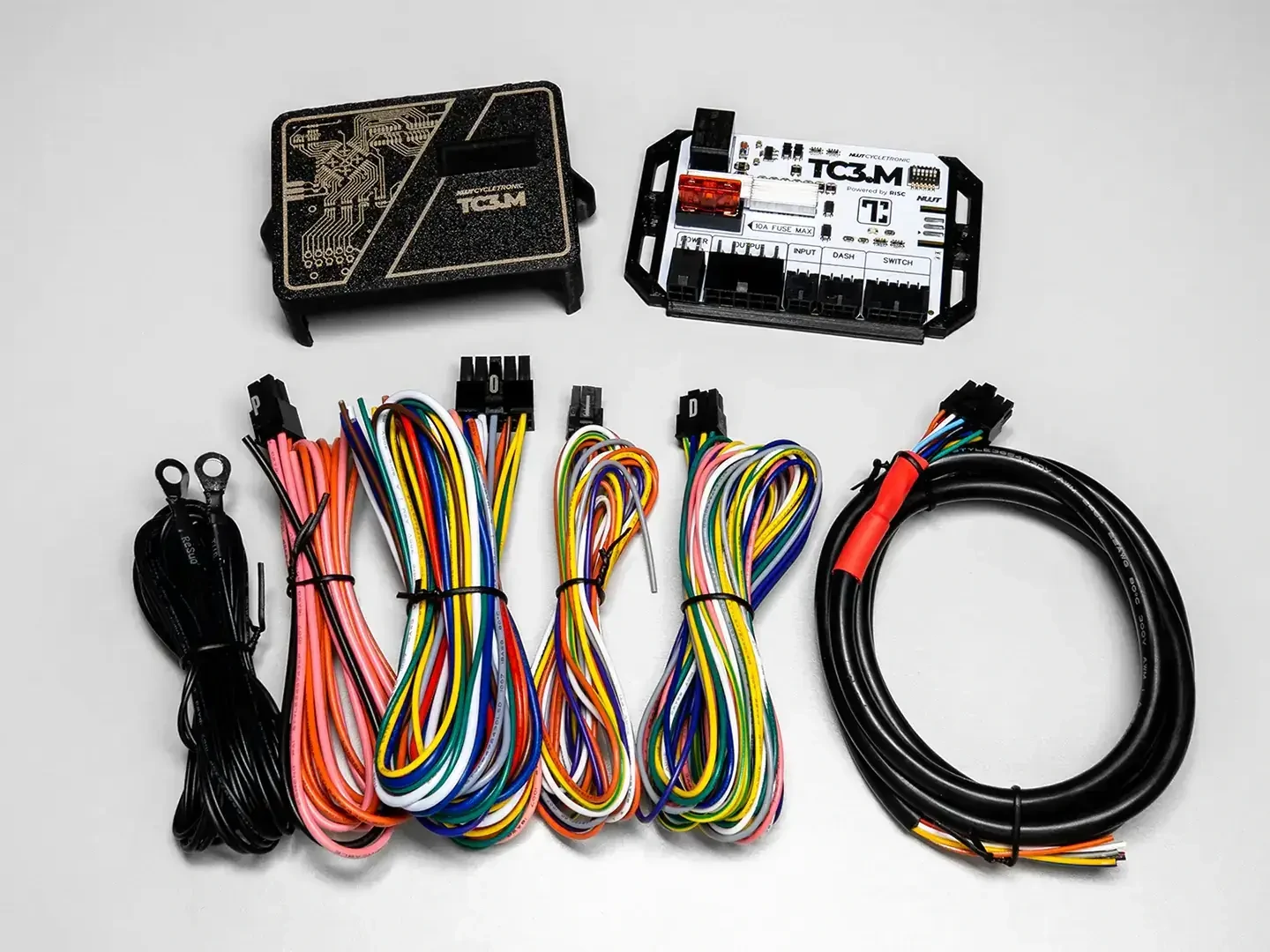

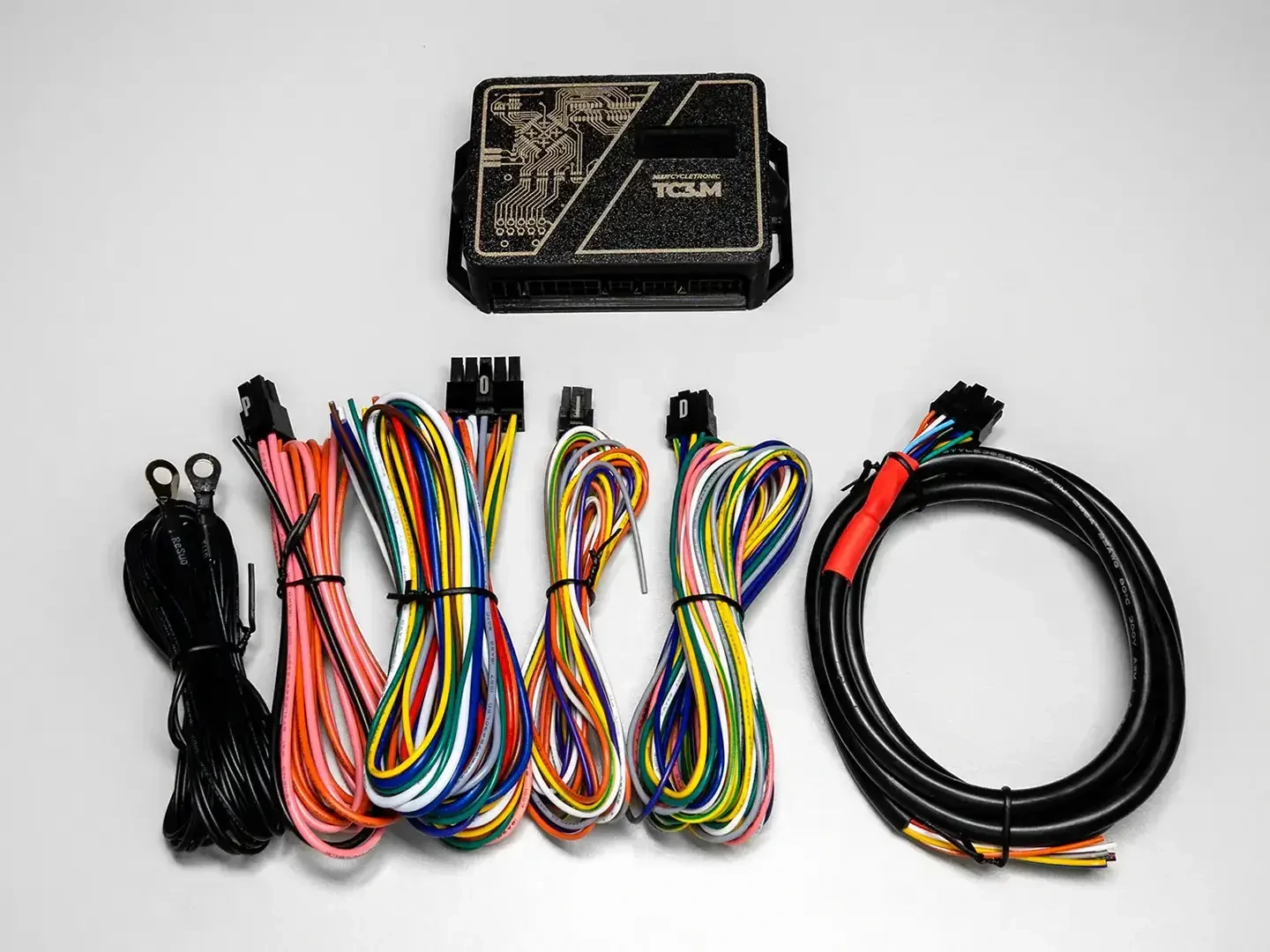

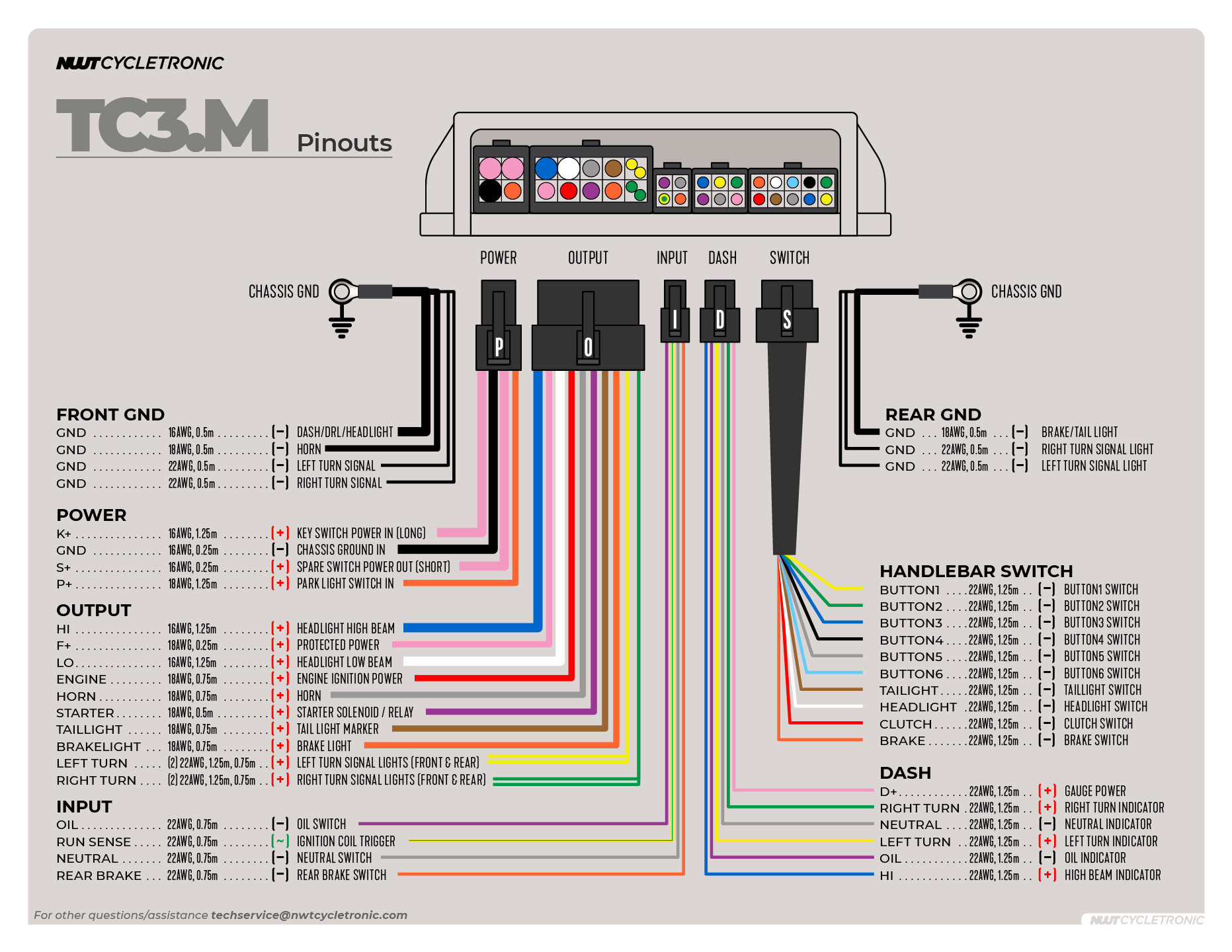

- Complete color-coded wiring harness
- No start ignition coil time-out power off
- Starter motor safety lock out with anti-grind
- Starter motor max crank time out
- Brake light flash pre-warning (Selectable)
- Automatic brake light HOLD (Selectable)
- Onboard digital flasher (Selectable)
- Intelligent directional switching signal light
- Signal light time out auto off
- DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
- "PARK" position light feature (Hazard lights)
- Master light control
- Sensor inputs
- Auxiliary sensor input/output
- Dash gauge outputs (Enhanced)
- Soft start headlight ON
- Engine run monitoring
- Multi-use internally protected power output
- Single wire PWM taillight output
- Sequential/self flashing signal light capable
- Plug&Go handlebar switch set (Harness only)
- DIY fully configurable handlbar switch input
- Handlebar switch size (DIY)
Product Code: 6uzutOI
Product Condition: New
weight: 750.0g
